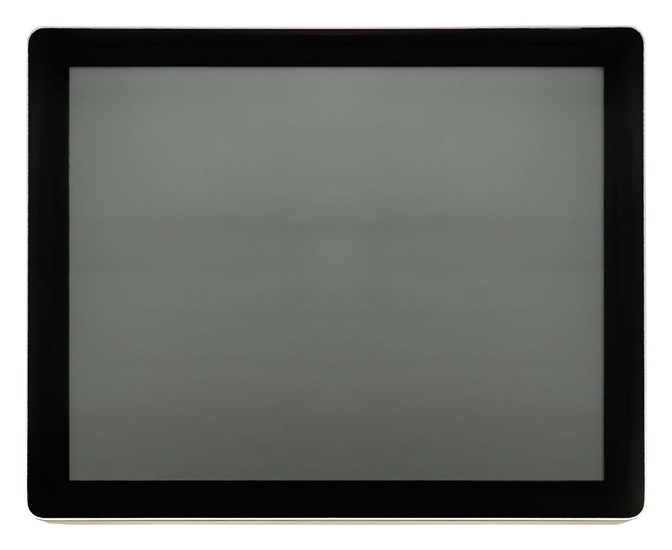

TM1500P
15″ Industrial True-flat PCAP Touch Monitor
Data sheet (PDF)| Front Bezel | Ultra slim aluminum front bezel |
| LCD Panel | 15" |
| Max Colors | 16.7 M |
| Active Area | - |
| Max Resolution | 1024 x 768 |
| Display Mode | VGA x 1, DP x 1, HDMI x 1 VGA x 1, DVI x 1 (Optional) |
| Pixel Pitch | - |
| Backlight MTBF | 50,000 Hrs |
| Viewing Angle | 88/88 (H), 85/85 (V) |
| Response Time | |
| Contrast Ratio | 1000 : 1 |
| LCD Brightness | 250 Nits |
| Display Control | OSD Key Control |

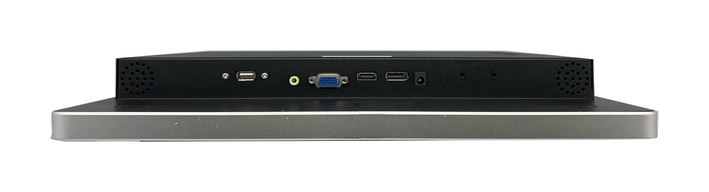

| I/O Interface | - VGA x 1, DP x 1, HDMI x 1 - VGA x 1, DVI x 1 (Optional) - Ambient light sensor (Optional) |
| Touch Screen | True-flat PCAP Touch (USB Interface) or Resistive Touch (Optional) |
| Power Adapter | Power supply DC 12V or Universal 90-240V, 12V/50W power adapter |
| Power Consumption | |
| Operating Temperature | 0°C ~ 60°C |
| Dimensions | 358.3 x 281 x 48 mm, suggested cut out is 335 x 257 mm |
| Weight | 2.2 Kg |

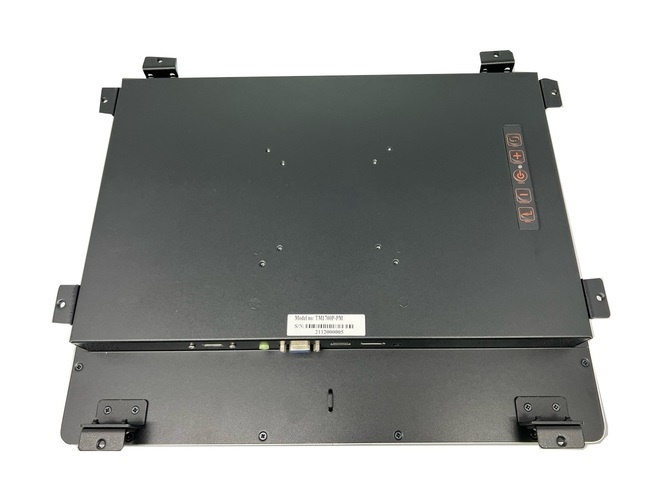

| Mounting | VESA Mount 75 x 75 mm or 100 x 100 mm, or Panel Mount with Panel Mount bracket (Optional) |
| Certifications | CE, FCC |
