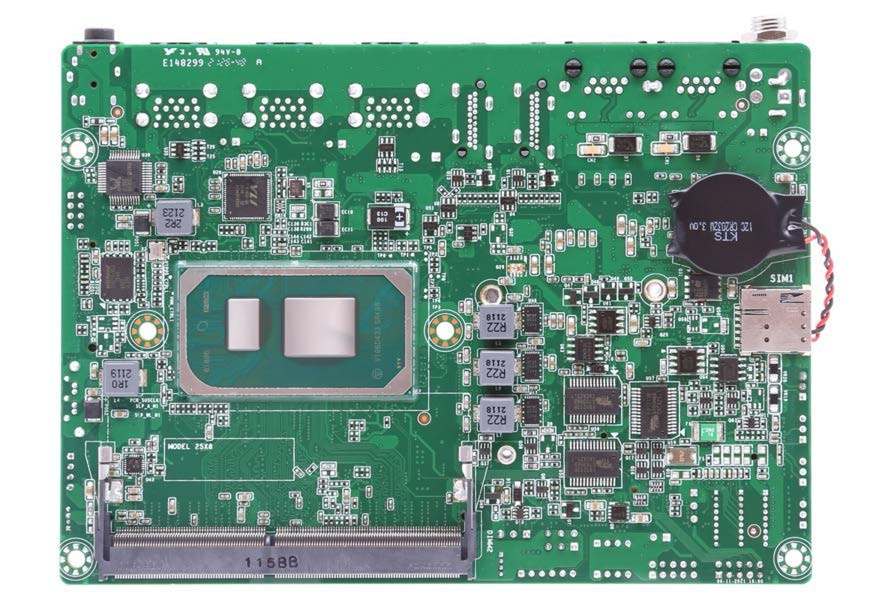

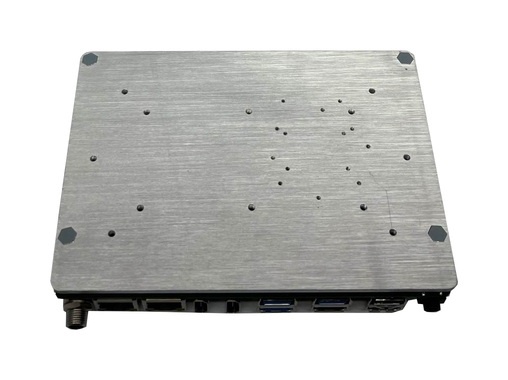

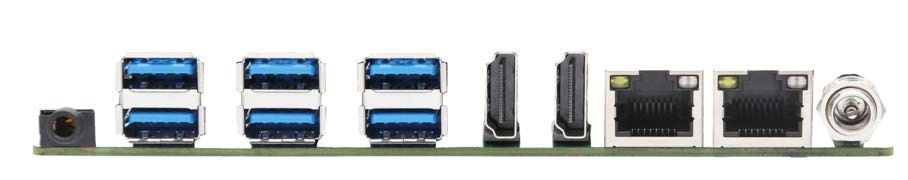

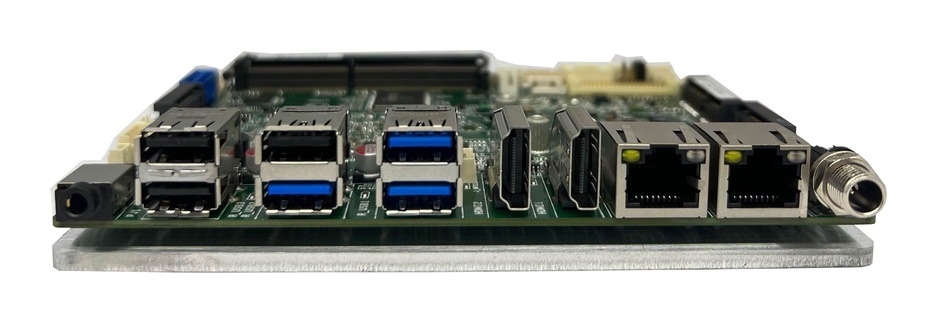

TH35-TGL
Industrial 3.5″ Embedded Motherboard with Intel Core Tiger Lake i3-1115G4/i5-1135G7/i7-1165G7/i7-1195G7 Processor
Data sheet (PDF)| CPU | Intel 11th Intel Core Tiger Lake i3-1115G4/i5-1135G7/i7-1165G7/i7-1195G7 Processor, TDP is 15W |
| Chipset | SoC integrated |
| System Memory | DDR4-3200 MHz, 2 x non-ECC SO-DIMM, up to 64GB |
| BIOS | AMI |
| COM | 3 x RS-232, 2 x RS-232/TTL, 1 x RS-232/485/TTL |
| USB | 6 x USB 3.0 4 x USB 2.0 (Internal) |
| Ethernet | 2 x RJ-45, Intel Giga LAN |
| Display | 2 x HDMI (Up to 4096 x 2160 @ 30Hz) 1 x LVDS (Up to 1920 x 1080 @ 60Hz) (Default) 1 x eDP (Up to 3840 x 2160 @ 60Hz) (Optional) |
| Digital I/O | Programmable support 8-bit GPIO |
| Audio | 1 x Line-out + MIC |
| Storage | 1 x SATA 3.0, 1 x M.2 Key-M (Default is SATA) |
| Expansion | 1 x M.2 Key-E Slot (PCIE + USB 2.0, Support Wifi + BT, 2230) 1 x Mini PCI-E Slot (PCIE +USB 2.0, Support Wifi +3G/4G, with 1 x nano-SIM card slot) |
| Others | 1 x 8-bit GPIO Wafer, 1 x Debug Header, 1 x HDD LED Header, 1 x System Reset Header, 1 x Power LED Header, 1 x Power Button Header, 1 x CPU FAN Header, 1 x CMOS Clear Jumper |
| Battery | - |
| Power Requirements | 1 x DC 12V Power Input Connector |
| Watchdog Timer | 1 - 255 steps by software program |
| Hardware Monitoring | - |
| Operating Temperature | -20°C to +60°C |
| Relative Humidity | 10% to 95% relative humidity, non-condensing |
| Dimensions | 146 x 105 mm, 3.5-inch |
| Board Thickness | - |
| Certifications | CE, FCC Class B |
