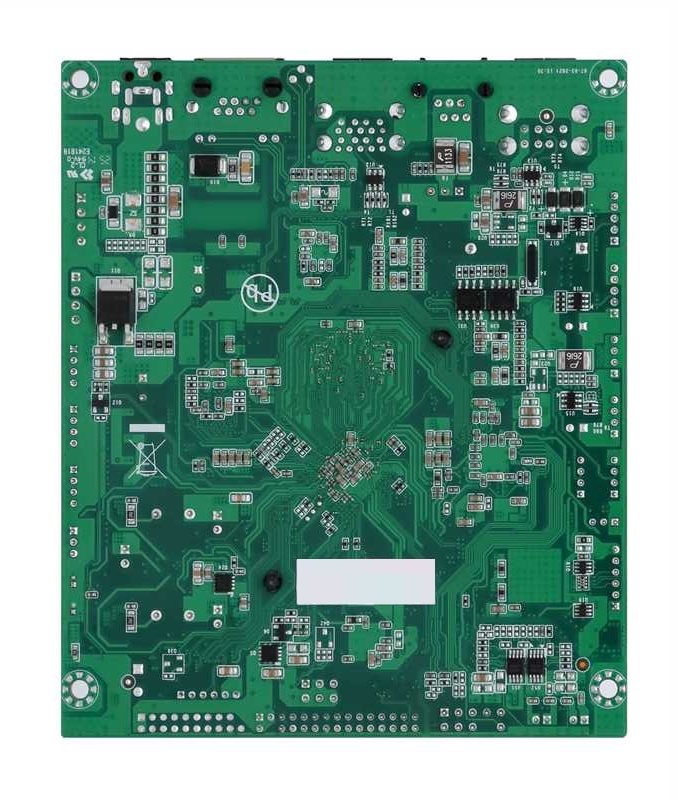

TH30-RK3566
Industrial Embedded Motherboard with RK3566 CPU, support Android 11
Data sheet (PDF)| CPU | ARM Rockchip RK3566, Quad-Core Cortex-A55, up to 1.8 GHz |
| Chipset | - |
| System Memory | SDRAM LPDDR4X, 2/4 GB, on board (Default is 2GB on board) |
| BIOS | - |
| COM | 2 x RS-232/TTL, 2 lines 1 x TTL, 1 x RS-232 |
| USB | 1 x USB 3.0, 8 x USB 2.0, 1 x USB 2.0 OTG |
| Ethernet | 1 x Realtek GbpsEthernet Controller (PHY), RJ45 |
| Display | 1 x eDP: Max resolutions up to 2560 x 1600 @ 60Hz 1 x LVDS: Max resolutions up to 1920 x 1080 @ 60Hz |
| Digital I/O | 4 x Programmable GPIO |
| Audio | 1 x Line-out + MIC |
| Storage | 1 x eMMC 32/64G (Default is 32GB eMMC on board) |
| Expansion | Realtek 2.4GHz + BT 4.2 on board |
| Others | - |
| Battery | - |
| Power Requirements | DC 12V, optional 24V |
| Watchdog Timer | - |
| Hardware Monitoring | - |
| Operating Temperature | -20°C to +60°C |
| Relative Humidity | 10% to 95% relative humidity, non-condensing |
| Dimensions | 120 x 102 mm |
| Board Thickness | - |
| Certifications | CE, FCC |
