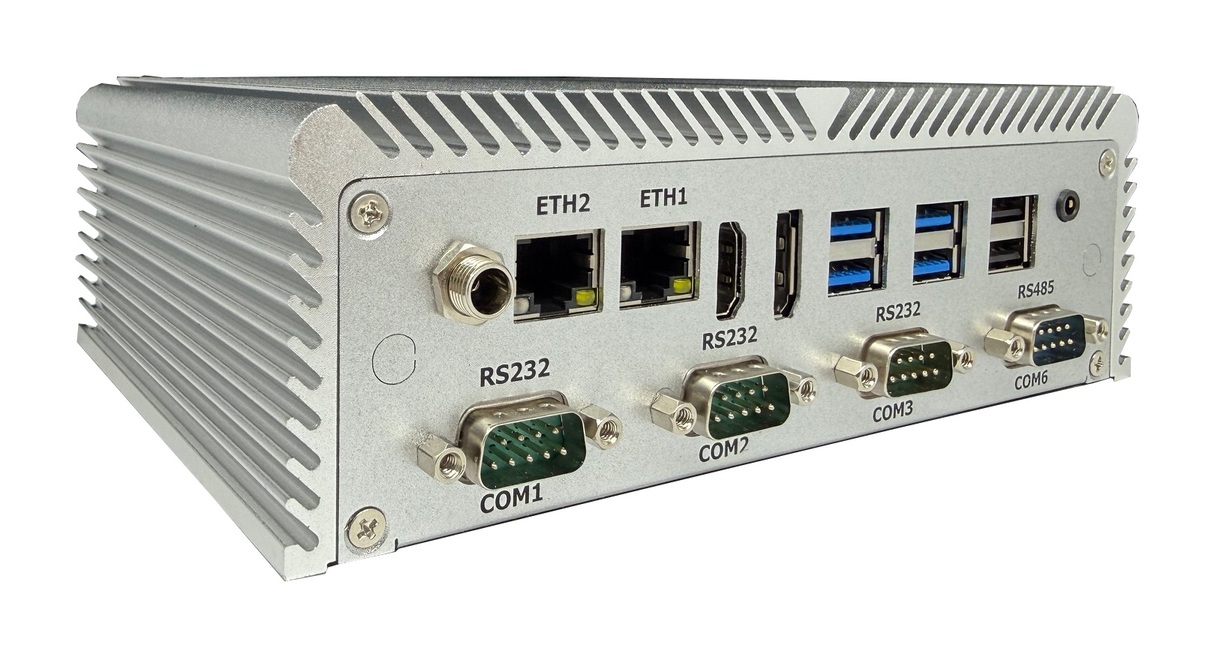

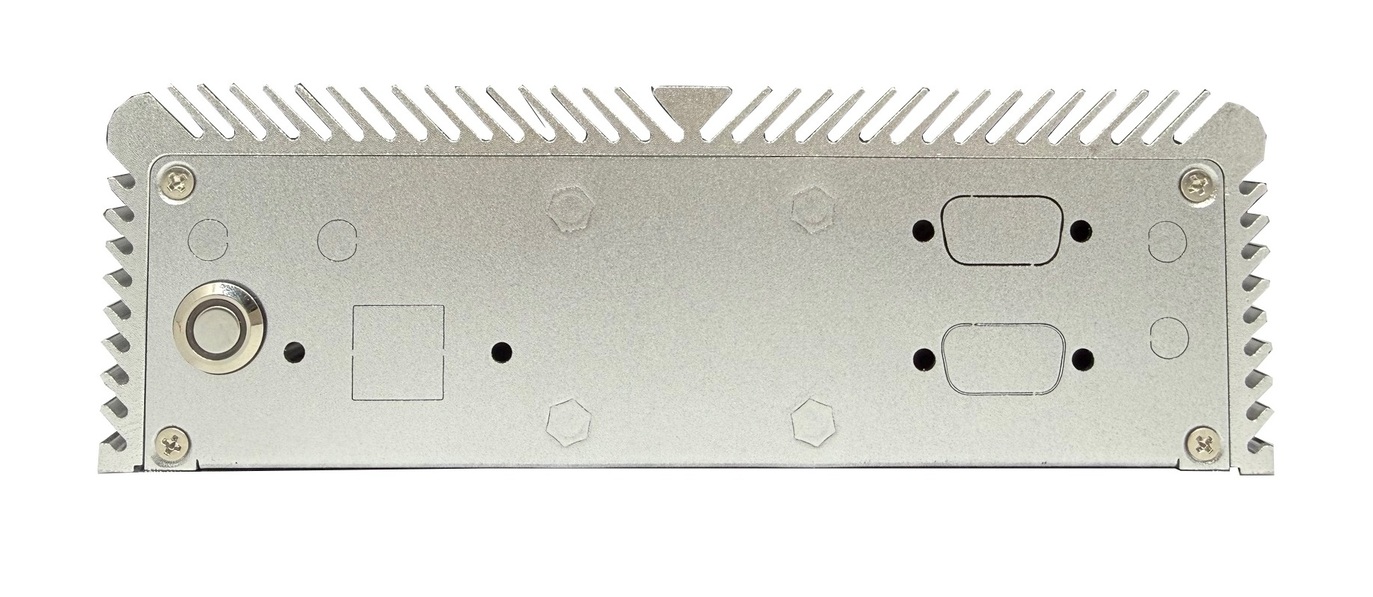

TBOX-ALN-6C
Fanless Embedded System with Alder Lake-N N95/N97/N100/i3-N305 Processor with Max. 6 x COM ports, 8 x USB ports
Data sheet (PDF)| CPU | Intel Alder Lake-N N95/N97/N100/i3-N305 Processor |
| Chipset | CPU Integrated |
| System Memory | DDR4-3200 MHz, 1 x non-ECC SO-DIMM, up to 16GB |
| BIOS | AMI |

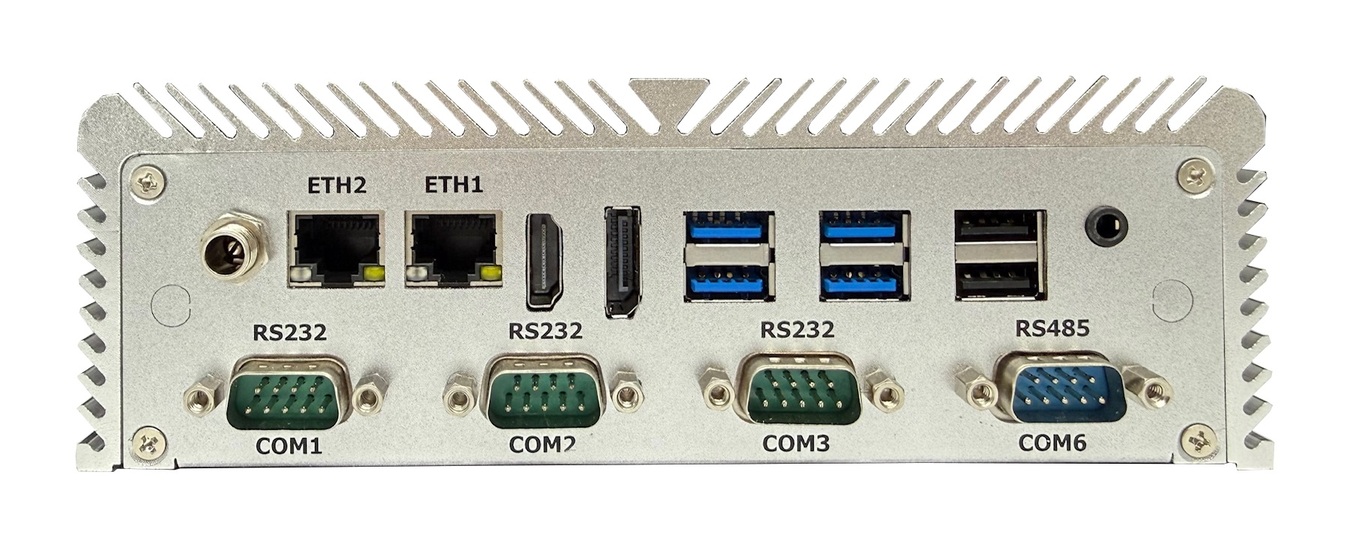

| COM | 3 x RS-232, 1 x RS-485 (Optional extra 2 x RS-232) |
| USB | 4 x USB 3.0 |
| Ethernet | 2 x RJ-45, Intel GBE LAN Chip (10/100/1000 Mbps) |
| PoE | - |
| Display | 1 x HDMI |
| Digital I/O | |
| Audio | 1 x Line-Out + MIC 2 in 1 4.0mm Jack |
| Storage | 1 x SATA 3.0, 1 x M.2 Key-M NVMe/SATA auto detect |
| Expansion | 1 x M.2 Key-E Slot (PCIE + USB 2.0, Support Wifi + BT, 2230) |
| Others | 1 x 8-bit GPIO Wafer, 1 x Front Panel Wafer, 1 x CPU FAN Wafer, 1 x CMOS Clear Jumper |
| Power Supply | DC-in 12/19/24V (auto detect) |
| Watchdog Timer | With Watchdog Timer |
| Construction | - |
| Operating Temperature | -20°C ~ 70°C |
| Relative Humidity | 10% ~ 95% RH non-condensing |
| Vibration | - |
| Shock | - |
| Dimensions | 182.12 x 130 x 59.85 mm |
| Weight | 1.20 Kg |
| Certifications | CE/FCC |
| EOS Support | - |
| Software Support | Windows 10, Windows 11, Linux |
| Mounting | VESA mount 100 x 100 mm, DIN Rail with DIN Rail bracket (Optional) Wall Mount with Wall Mount bracket (Optional) |
