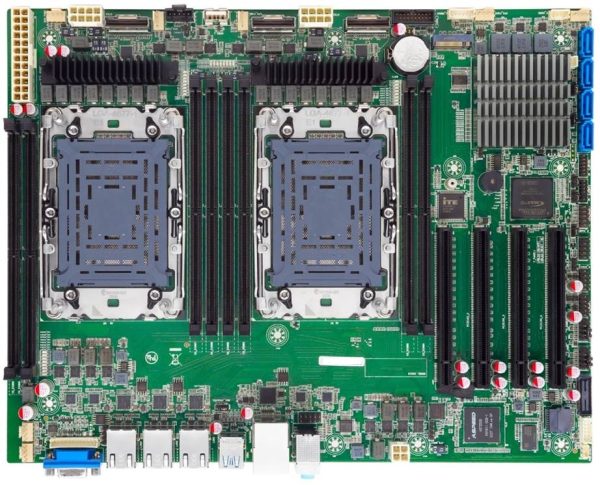

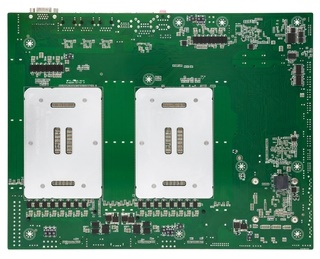

MFX-C741test
Industrial ATX Embedded Server Motherboard with Dual Intel 4th Gen Xeon Scalable Processors processor
Data sheet (PDF)| CPU | Intel 4th Gen Xeon Scalable Processors, Socket LGA 4677 Number: 2, 205W each, support Intel UPI up to 16 GT/s |
| Chipset | Intel C741 |
| System Memory | 8 x DDR5-4800MHz ECC R-DIMM, up to 512GB |
| BIOS | AMI |

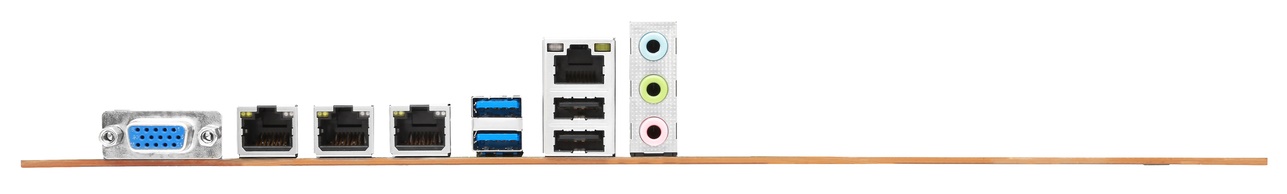

| COM | 1 x RS-232, 2 x RS-232 (Internal) |
| USB | 2 x USB 3.0 (Internal 2 x USB 3.0) 2 x USB 2.0 (Internal 6 x USB 2.0) |
| Ethernet | 3 x 2.5GbE, 1 x Gigabit Ethernet |
| Display | 1 x VGA |
| Digital I/O | Support |
| Audio | Line-Out + MIC + Line-In |
| Storage | 1 x M.2 Key-M Slot (PCIe x4 NVMe SSD, 2280) 4 x SATA 3.0 (SATA 7P) 3 x Slim SAS 8i Vertical Connector |
| Expansion | 4 x PCI-E x16 Slot (Gen. 5) |
| Others | 1 x SMBus Wafer, 1 x Front Panel Header, 1 x ESPI Header 1 x GPIO Header, 1 PS/2 Wafer, 1 PMBus Wafer, 7 x Smart FAN Wafer |
| Battery | - |
| Power Requirements | ATX Standard (24P + 8P) 2 x ATX 8P CPU Power Input Connector 1 x ATX 24P Power Input Connector 1 x ATX 4P 12V CPU Power Input Connector |
| Watchdog Timer | 1 - 255 steps by software program |
| Hardware Monitoring | - |
| Operating Temperature | 0°C to +65°C |
| Relative Humidity | 10% to 95% relative humidity, non-condensing |
| Dimensions | 305 x 244 mm |
| Board Thickness | - |
| Certifications | CE, FCC |
